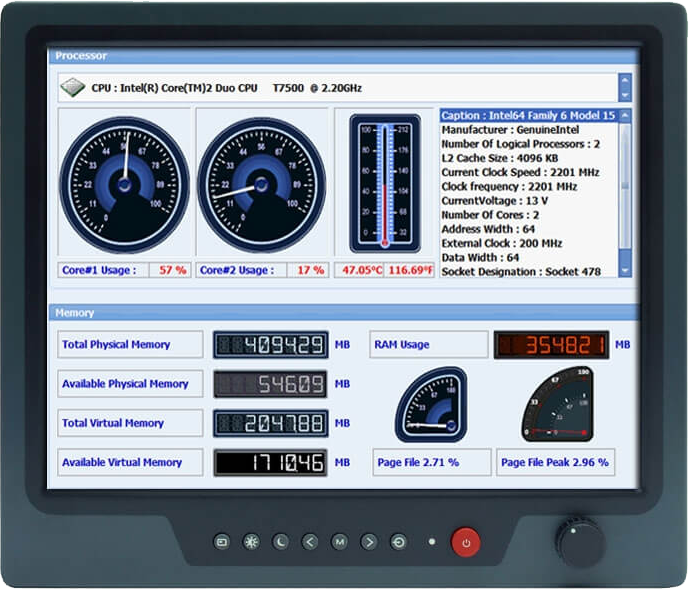

Smart Touch SL19
19" IP65 Sunlight Readable PCT Multi-Touch Marine Display
High brightness (1,600 nits) LCD
Advanced Optical Bonding (AOT)
High shock & vibration resistance
Picture-in-Picture function
Projected capacitive multi-touch support
IP65 waterproof (front)
9-36V DC input
BV Rule IACES-E10 certified; IEC 60945 compliant
Specifications
- Model name: NPD1968
- Description: 19" IP65 Sunlight Readable PCT Multi-Touch Marine Display
- Size: 19"
- Display area: 376.3(H) x301.1(V)
- Brightness: 1600 cd/m2
- Resolution: 1280x1024
- Aspect ratio: 4:3
- Contrast ratio: 1000:1
- Pixel pitch (mm): 0.294 (H) x 0.294 (V)
- Pixel per inch (PPI): 86
- Viewing angle: 170° (H), 160° (V)
- Display colors: 16.7m
- Response time (Typical): Tr 3.6ms/Tf 1.4ms
- Video interface: VGAx2, DVIx2, Compositex3, RS232x1, USBx1
- Input power: DC input 9~36V
- Power consumption: 42w
- Dimensions (mm): 463x411.1x56.9
- Weight (Net): 5.5kg
- Mounting: Panel (Flush) mount, VESA mount
- Operating temperature: -10°C~50°C (-14°F~122°F)
- Storage temperature: -20°C~70°C (-4°F~158°F)
- Product approval: CE/FCC
- Picture in picture: 3 stages (Child, split and wide screen)
- IP rating: IP65 waterproof (facial) with console mounted
- Construction: Rugged aluminum alloy chassis
- Optional: Glass Resistive Touch PCT Touch
- Marine Type Approval: IEC 60945 BV marine and IACS-E10 approval pending
